Quality parameters
| DC withstand voltage |
Maximum 6000 VDC |
| Maximum load |
5400pa |
| Hail test |
Diameter 25mm, speed 23m/s |
| Fire rating |
Class C |

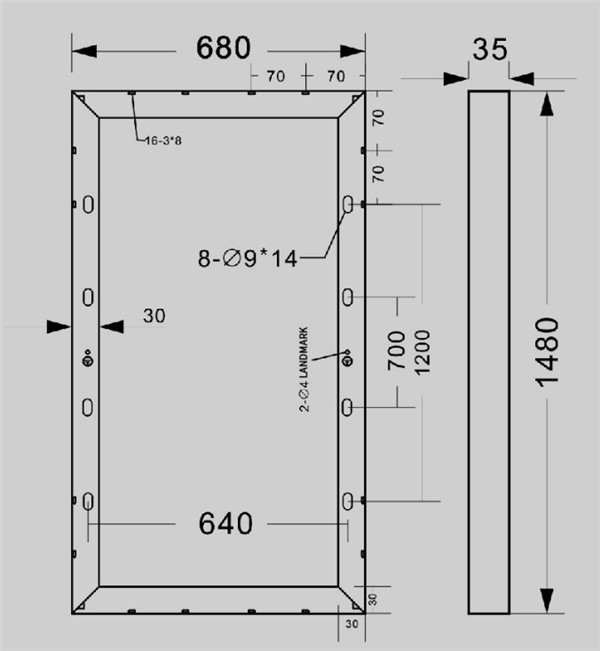

Mechanical Characteristics
| dimensions |
1480,680,35mm |
| weight |
11.7KG |
| solar cells |
36 cell in series |
| cable |
copper(2.5mn?) |
| lengths |
700mm(-)and700mm(+) |
| connector |
Mc4 PlugTyps |
| glass type |
high transmits,Low lron,3.2mm Tempered Glass |
| frame |
Aluminium-alloy |
Electrical Specifications
| Model |
SBM6-36-180 |
| Peak power(pmax) |
180W |
| Maximum safe current |
25A |
| Max.power volt.(vmp) |
19V |
| Max.power current(lmp) |
9.6A |
| Open circuit volt.(voc) |
22.5V |
| Short circuit current(lsc) |
10.2A |
| Power tolerance |
0 〜+5W |
| Max.system voltage |
1500V |
| Series fuse rating(A) |
15 |
| Number of bypass diode |
3 |
| Operating temperature |
-40°C to+85°C |
| dimensions |
1480*680*35mm |
| weight |
11.7KG |
| solar cells |
36 cell in series |
| cable |
copper(2.5mm) |
| lengths |
700mm(-)and700mm(+) |
| connector |
Mc4 PlugTyps |
| glass type |
high transmits,Low Iron,3.2mm Tempered Glass |
| frame |
Aluminium-alloy |
| DC withstand voltage |
Maximum 6000 VDC |
| Maximum load |
5400pa |
| Hail test |
Diameter 25mm, speed 23m/s |
| Fire rating |
Class C |
