60cells 5BB 9BB 300w 320w Mono solar pv module

Short Description:

  • Power: 320w
  • •Model NO.: SBM6-60-320
  • Brand: Shaobosolar
  • MOQ: 1*40 HQ
  • Port: Qingdao/Tianjin
  • Payment terms: T/T, L/C
  • Delivery time: Within15days after getting deposit

Product Detail

Product Tags

SBM6-60-320 mono crystalline
SS022QL2)IEY%3(J_)Y0`B0

Electrical Specifications

Model SBM6-60-320
Peak power(pmax) 320W
Maximum safe current 25A
Max.power volt(vmp) 31.9V
Max. power current(lmp) 10.06A
Open circuit volt.(voc) 38.16V
Short circuit currcnt(lsc) 10.86A
Power tolerance 0〜・5W
Max,system voltage 1500V
Series fuse rating(A) 15
Number of bypass diode 3
Operating temperature -4(TC to*85*C
STCifTddlMKC l(XW/rti, Poduk temperature 25-€,^1.5

Mechanical Characteristics

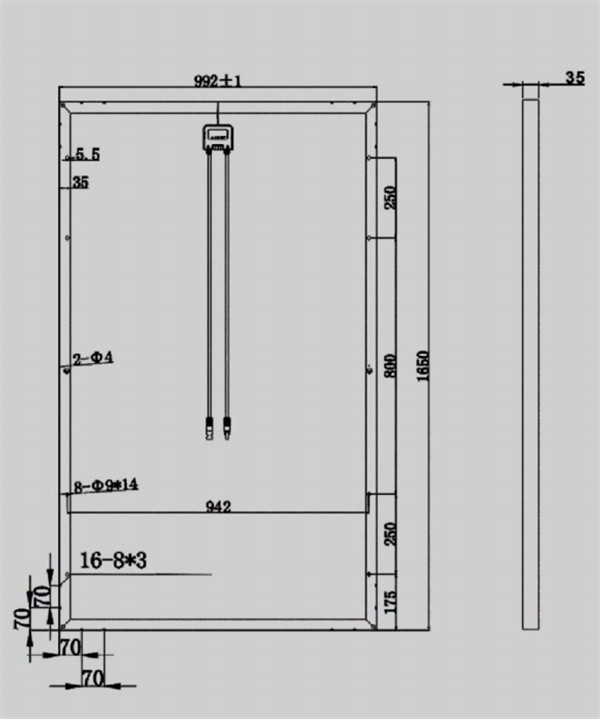

dimensions 1650*992*35mm
weight 18.8KG
solar cells 60 cell in series
cable copper(4mm)
lengths 900mm(-)and900mm(+)
connector Mc4 PlugTyps
glass type high transmits,Low Iron,3.2mm Tempered Glass
frame Aluminium-alloy

Quality parameters

DC withstand voltage Maximum 6000 VDC
Maximum load S4O0pa
Hail test Diameter 25mm, speed 23m/s
Fire rating Class C
