585W TOPCon Mono Solar Panel Manufacturer Reliable China Factory and Suppliers
Boost energy yield with the SBM-10-144-585W Mono Solar Panel. As a premier China factory and trusted suppliers, Shaobosolar offers 21.65% TOPCon efficiency and 25-year durability. Wholesale pricing available for high-performance modules. Contact our factory today.

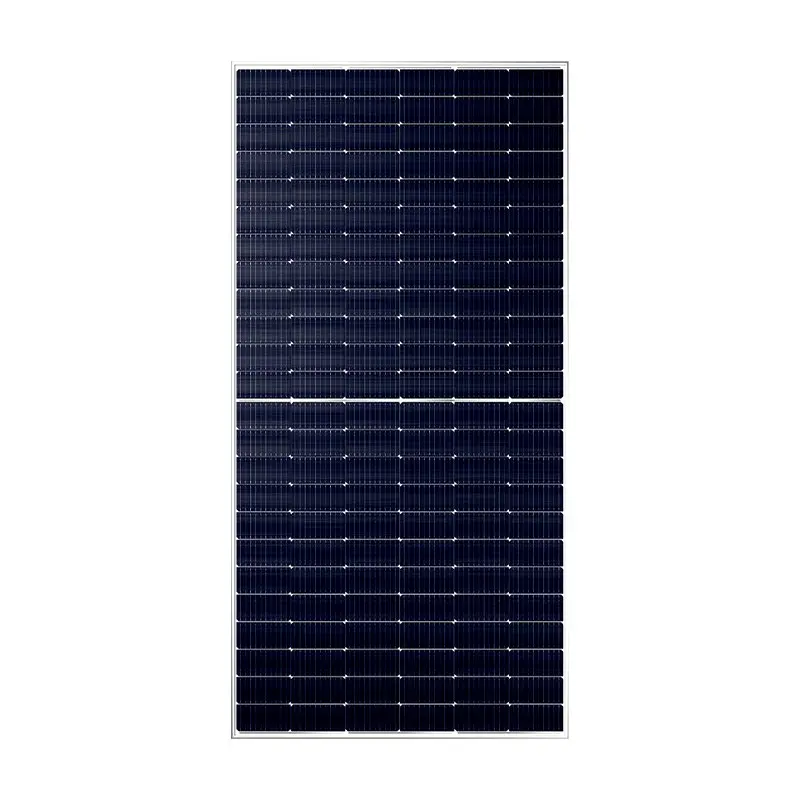

The SBM-10-144-585W is a high-performance Monocrystalline Solar Panel engineered for maximum energy harvest and superior efficiency. Utilizing advanced TOPCon cell technology (182x182mm), this module achieves a remarkable conversion efficiency of 21.65%, allowing project developers and homeowners to generate significantly more power within a smaller installation footprint.
Designed for unmatched durability and versatility, the SBM-10-144-585W is an ideal energy solution for a wide array of applications, ranging from residential rooftops and commercial warehouses to large-scale utility solar farms. Its sleek dark aesthetic, combined with a robust mechanical construction, ensures stable performance even in challenging low-light or high-temperature environments.
| Peak Power (Pmax) | 585W | Module Efficiency | 21.65% |
|---|---|---|---|
| Max Power Voltage (Vmp) | 43.61V | Max Power Current (Imp) | 13.42A |
| Open Circuit Voltage (Voc) | 52.34V | Short Circuit Current (Isc) | 14.12A |
| Power Tolerance | 0~+5W | Max System Voltage | 1500V DC |
| Operating Temperature | -40℃ to +85℃ | Series Fuse Rating | 25A |
Built with high-transmit, low-iron tempered glass and an aluminum-alloy frame to withstand extreme weather and loads up to 5400pa.
Engineered for longevity, these cells are designed to retain over 80% of their original capacity after 25 years of operation.
Leveraging TOPCon technology to reach 21.65% efficiency, maximizing electricity yield per square meter of installation.
Maintains consistent power output during cloudy days or early mornings, ensuring a reliable energy supply in diverse lighting.
Uniform dark appearance and slim profile make it perfect for urban facades and residential rooftops where aesthetics matter.
Available in both monofacial and bifacial dual-glass options to optimize energy capture based on the installation environment.
Reduce land and rooftop usage by leveraging high energy density, lowering overall installation costs.
Minimize long-term maintenance requirements thanks to the robust aluminum-alloy frame and durable glass.
Perfectly integrates with modern tracking systems to maximize daily energy yield and real-time monitoring.
Helps commercial enterprises meet green building standards and demonstrate corporate environmental responsibility.
Easily pairs with energy storage systems (BESS) to ensure a stable power supply for off-grid installations.
Predictable energy production and high conversion rates accelerate the return on investment for PV developers.
| Feature | Mono SBM-10-144 | Standard Poly Panel |
|---|---|---|
| Energy Conversion | Up to 21.65% | Typically 15-17% |
| Space Efficiency | High (Less Panels Needed) | Low (More Area Required) |
| Low-Light Output | Excellent Performance | Moderate Performance |
| Service Lifespan | 25+ Years Stability | 15-20 Years Average |
| Project ROI | Faster Recovery | Slower Recovery |
Monocrystalline panels are made from a single, pure silicon crystal, allowing electrons to move more freely, resulting in higher conversion rates typically between 20% and 24%.
Yes, our monocrystalline silicon cells maintain more stable performance in low-light conditions and cloudy weather compared to polycrystalline panels.
Monofacial panels capture light only on the front side, while bifacial dual-glass panels capture light from both sides, increasing total energy yield via reflected light.
High-quality mono panels are designed to operate for 25 years or more, often retaining over 80% of their original capacity throughout their lifespan.
Absolutely. Their high efficiency makes them ideal for off-grid systems where space is limited and maximizing harvest is critical for powering homes.
The SBM-10-144-585W is designed to handle a maximum mechanical load of 5400pa, making it highly resistant to heavy snow and wind pressure.
